Secure & Eco-FrIENDLY
FencE/ Fencing Products
Customize your order, rest we will do for you
Our Products
Cast Aluminium Fence
Description Fabrication and supply of Powder coated Material Specifications.(Regular) Cast Aluminium fence excluding Blocks: ■ Panel Size: 1200mm (h) x 3500mm Width ■ Main Post: 80 x 80 mm x 3mm thick x 2000m height Aluminium Tube fixed to Concrete with Base Plate ■ Vertical bars: 20 x 20 mm x 2mm thick Cast Aluminium vertical tubes with 100 mm gap x 1900 Height x 42 No’s per panel – (10 cm gap from ground) ■ Horizontal Bars: 40x 40 x 3mm thick – Top & Bottom Horizontal Rails x 2 no’s per panel ■ Fixing Each Panel to Concrete Block by 150x150x10mm Base Plate and Anchor Bolt ■ Surface: Cast Aluminium with Powder coated Finish in Approved RALGABION FENCE
Wire Mesh Gabion Boxes: - 1200 mm Description Fabrication and supply of Welded Wire mesh gabion Boxes Material Specifications.(Regular) ■ including Stiffeners ■ Welded Gabion Wire 4.0mm include stiffeners ■ 100 x 100mm mesh hole ■ Hot dipped Galvanized Material Box Size: 1200(L)x600(W)x1200mm(H)Palisade fence
Palisade Fence (2.4m Ht) Description Fabrication and supply of Palisade fence as per below specs & drawing.(Exclude RCC Blocks) Material Specifications.(Regular) ■ Fence Height 2.4mtr ■ W Pales 17 pcs 68 x 3mm x 2200mm height ■ Crossbars 2 no’s 45 x 45 x 4mm ■ Post 100 x 55mm Thickness 3.6mm ■ Fish Plates 130 x 30mm ■ Nuts and Bolts 34 per panel M8 x 25mm ■ Rail fixing Bolts and Nuts M12 x 30mm ■ Exclude delivery and InstallationRubber Block
760 w x 200 x 125 ht x 17 kgGalvanized Temporary Steel Fence in Dubai – Alton Fencing
RAL 9002 : off White Description Galvanized Temporary fence (Panel Type) for construction sites as per DM approved. Economical for pocket. Available in all colors Material Specifications (Regular) GI Corrugated Panel Fence: - (2.0 mtr Height) Fabrication & supply of GI Fencing– as per below specification: ■ Fence will be 0.3 mm corrugated profile sheet35/200 ■ Pipe will be 42 mm OD G.I- 1.0 mm (T) ■ U Channel- 40x40x40mm- 1.0 mm (T) ■ Fence colour off white- (RAL 9002 off White) ■ Clamp - G.I Standard clamp ■ Support Pipe (L)- 170cm ■Fence (H) 2.0 metre. x 2.18(W) - clamp to clamp ■ Fence Height from ground level 2.20 metre (H) Prices: 43 AED/LM – 0.3 MM THK 53 AED/LM - 0.4 MM THK Customize your product:CONTINUOUS FENCE
RAL 9002 Description Galvanized Temporary fence (Continuous Type) for construction sites as per DM approved. Available in all colors (Good for branding also). Material Specifications.(Regular) CONTINUOUS STEEL FENCE FOR PROJECT: - ■ Fabrication & supply of CONTINUOUS STEEL FENCE ■ Fence will be .40mm corrugated profile sheet. 9002 color ■ Pipe will be 42 mm OD G.I- 1.2 mm (T) front and back ■ U Channel- 40x40x40mm- 1.2 mm (T) ■ Fence color off white - (Ral 9002) ■ Clamp & Coupler - G.I Standard. ■ back Support Pipe (L)- 2 mtr main support ,1.1 horizontal & 1.6 mtr inclined with 0.6 mm sleeve ■ Fence 2.0 meter Height & from ground 2.10 mtrANTI CLIMB FENCE
RAL 6005 Description Anti Climb/High Security fence specially for high security or public prohibited entrance areas like Borders, Plants. Government high security projects etc. Material Specifications.(Regular) Anti-Climb Fence:- Fabrication and supply of Anti Climb Fence Mesh. ■ Mesh size 76.2 × 12.7mm × 4.0mm Dia after powder coating Mesh. ■ Fence panel size: 2150mm (w) × 2500mm (h) panel height. ■ Post 2500, 60 x 2.5mm (T) ■ Surface: Galvanized+ powder coating (RAL 6005 Green). ■ 5 clips (Thickness 2.6mm) ■ Bolts 8mm ■ 1 welded floor plate thickness 8.0mm Customize your product:Welded Mesh Fence in Dubai
RAL 6005 Description Stylish and durable fence for playgrounds, parks, farms, buildings, and high-security areas. Material Specifications.(Regular) STANDARD WELDED MESH FENCE FOR PROJECT: - ■ Fabrication & supply of Welded Mesh Fence ■ Size: 2200mm(W) X 2000mm(H) ■ Hole size :50 X 200mm ■ Wire Dia.: 4mm (After coated) ■ Post: 50 X 50 X 2mm(T) X 2500mm(H), with underground 500mm Prices per Size: 102 AED/LM – 2 M HEIGHT 125 AED/LM – 2.5 M HEIGHT 145 AED/LM – 3 M HEIGHT Surface: Galvanized + Green powder coated Customize your product:WELDED MESH GATE
RAL Paint FInish ColorsCHAIN LINK MESH GATE
Any RAL ColorChain Link Fence in Dubai
RAL 6005 Description Beautiful and strong fence. Mainly use for playgrounds, parks, Deserts, Farms, Buildings, High-security areas and sites. Material Specifications. (Regular) PVC - CHAIN LINK FENCE FOR PROJECT :- 2.0 MHT Fabrication and supply of PVC chain link fence as per below mentioned specification. ■ PVC CHAINLINK FENCING 2.2/3.2 mm fence color RAL 6005 ■ Fence height 2.0 mtr, MESH SIZE 50X50 ■ LINE WIRE – 3.55/4.75mm Dia 4 rows- Top row with double wire ■ STIRRUP WIRE - 2.50/3.55 mm DIA. ■ TIE WIRE - 1.40/2.00 mm DIA ■ INTERMEDIATE POST 60mm OD (2mm THK) MS PIPE @ EVERY 3 MT C/C ■ STRAINING POST 76mm OD (2mm THK) MS PIPE WITH 2 NOS. OF HORIZONTAL SUPPORT MADE OF 48 mm OD MS PIPE @ EVERY 30 MT C/C ■ CORNER POST 76 mm OD (2mm THK) MS PIPE @ EVERY CORNER ■ END POST 76mm OD (2mm THK) MS PIPE ■ All Post NC Paint Finish Green Color Ral 6005 TOTAL (H) FROM GROUND: 2.0mtr (H) Customize your product:Heras Fence Barrier
RAL 9006 Description Moveable fence easy to install and remove, Good for event organization and expo’s to control the crowd. Also helpful to do branding. Material Specifications.(Regular) Heras Fence for Project: - Fabrication & supply of Heras Fence ■ Surface: Hot Dip Galvanized + Silver Color RAL 9006 ■ Mesh opening :100 X 50mm ■ Wire Dia.: Horizontal:4mm, Vertical:3mm ■ Clamp Standard 3mm ■ Frame Pipe: Horizontal: 32X1.0mm(T) Vertical: 38X1.2mm(T) ■ Back support 2m x 40 OD x 1.2mm Size: 3500mm(W) X 2000mm(H) Customize your product:RTA Deco Fence
RAL 7035 Description Beautiful and strong fence. Mainly use for playgrounds, parks, Farms, Buildings, High-security areas and sites. Material Specifications.(Regular) DECO FENCE FOR PROJECT (1280 mm Height):-: ■ Fabrication & supply of Deco Fencing ■ Fence will be panel size: 2250mm (w) x 1.28 mm(H) ■ Wire Dia: Horizontal 8mm, Vertical 6mm ■ Hole Size: 65 x 200mm ■ Post: 1.28 mm , 60 x 1.5mm (T) ■ Surface: Galvanized + Grey Powder Coating ■ Post (3 clips, 1 welded floor plate 8mm thick, 1 water proofcap) Prices per Sizes:- 115 AED /LM - 1.28 M HEIGHT 147 AED/LM – 1.92 M HEIGHT Customize your product:Pvc Eco Fence
RAL:White Description Eco-Friendly and strong fence. Beautiful in look, perfect for branding. Specially made for high profile projects keeping in view of UAE weather. Material Specifications. (Regular) PVC ECO PANEL HOARDING FOR PROJECT: ■ Fabrication and supply of PVC Eco hoarding. ■ white flat Panel hoarding ■ GI Pipe 48 OD x 2mm (T) - height 2.2 mtr., section in every 2.5mtr cc ■ Runner – 3 no’s in each section ■ Sheet Size: 50cm x 2.4 H ■ clips for fitting ■ Coupler – (as per required) ■ 2.4 M HEIGHT Customize your product:Steel Structure/construction Signboard
Description:- Durable and clear signboard for construction sites, ensuring safety and compliance. Material Specifications.(Regular) STEEL STRUCTURE SIGNAGE (FRONT LIGHT) Signage with Flex Printing (as per given drawing) (Front Light Flex Printing) ■ Include all Signage +Back Support + Base Plate + Anchor Bolt +Paint + Pipe Frame 114 OD x 4mm T and all necessary materials with epoxy paint finish. ■ Sign board containing Project Perspective, Building Permit No., Plot No., Project Name, Client Name, Consultant, Contractor, Sub Contractor Name. Size: 4.0 Mtr (H) x 2.5 Mtr (W) (Exclude Crane/Exclude Foundation) Customize your product:Aluminum Fence in Dubai
Aluminum fence with Customer Supplied design - [Price varies as per the design] At ALTON® Group, you can find a variety of aluminum fence and cast iron fencing designs that will give your home or property the ideal finishing touch.Banner/Fence Branding

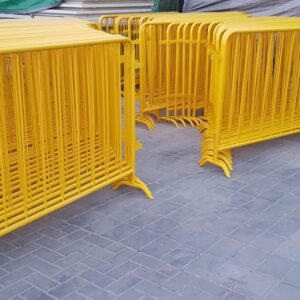

Printing of High-Resolution PVC Banner with High Quality link Digital Print (ofApproved Artwork) with Top and Bottom fixing by Rivet on hoarding.METAL BARRIER (Heavy Duty)
NC Paint Finish ColorsMETAL BARRIER
Description Eco-Friendly and strong barriers. Beautiful in look, perfect for branding. Specially made for high profile projects keeping in view of UAE weather. Material Specifications. (Regular) Metal Crowed/ Police Barriers: - ■ Fabrication & supply of Metal Barriers as per below details: ■ Size: 2500mm(W) X 1200mm(H) ■ Frame: 32X1.5mm(T) ■ Inner tube: 16X1mm(T) ■ Tube pitch: 150mm ■ Surface: Hot dipped galvanized ■ Barrier: Silver color Finish ■ 2.5 M WIDTH X 1.2 M HEIGHT Customize your product:CAR PARK SHADE – DUBAI – UAE
Description :- Fabrication and supply of car parking shade with steel structure and foundation. Material Specifications.(Regular) ■ Pvc fabric (Color Beige). ■ Size of shed: 2.75 x 5.5 mtr (for each car) ■ Height:2.40mtr from ground level ■ PVC fabric- steel section + epoxy coating + Foundation+ Base plate + Column + Arc members + Pipe + anchor bolts + excavation + back filling + Horizontal members ■ Fabric Warranty: 05 years Customize your product:Fence Block
60 x 40 x 20 CM x 115 KGSolid Block / Building Block
60X40X40 CM X 230 KGGI Pipe – Dubai – UAE
Available 42od / 48 od x 1 to 2 mm thickREGULAR CLAMP
Regular ClampDOUBLE COUPLER
Double CouplerInterlock ZigZag Block
40X40X40CM X 153 KG
About Company
ALTON GROUP - Fencing Suppliers in Dubai
ALTON® Group is one of the most popular & trusted name in the Construction industry for Fencing, Steel Fabrication, Concrete Blocks, Fence Branding, Construction signages or Advertising, since our journey started in the year 1998 from Middle East.
Our products are manufactured in strategically located, purpose-built factories in the cities of Dubai, Abu Dhabi and Sharjah in United Arab Emirates. We distribute globally to a host of countries. Our factory and processes are accredited to ISO 9001:2015 standards and we are registered as an ICV certified Supplier.
In addition to fencing, we specialize in security fence solutions that provide optimal protection for your property. We offer a wide range of fencing options, including chain link, cast iron, aluminum, and more, designed to meet your specific needs. At ALTON® Group, we are committed to delivering high-quality security fencing solutions that provide peace of mind to our clients.
