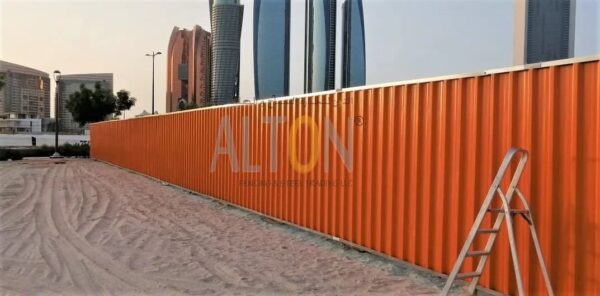

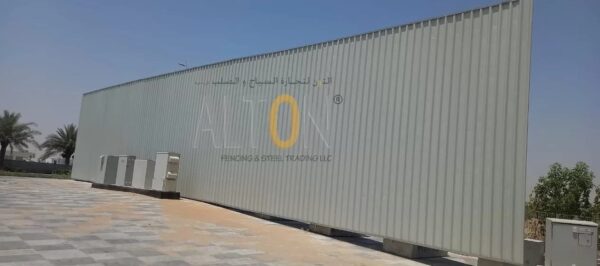

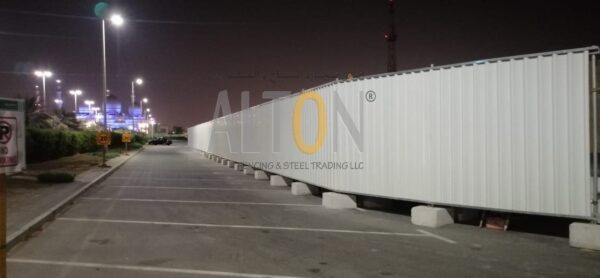

CONTINUOUS FENCE
CONTINUOUS FENCE
AED 95.00 (PER LM ( 2 M HEIGHT))
Material Specifications.(Regular)
CONTINUOUS STEEL FENCE FOR PROJECT: –
■ Fabrication & supply of CONTINUOUS STEEL
FENCE
■ Fence will be .40mm corrugated profile sheet.
9002 color
■ Pipe will be 42 mm OD G.I- 1.2 mm (T) front and
back
■ U Channel- 40x40x40mm- 1.2 mm (T)
■ Fence color off white – (Ral 9002)
■ Clamp & Coupler – G.I Standard.
■ back Support Pipe (L)- 2 mtr main support ,1.1
horizontal & 1.6 mtr inclined with 0.6 mm sleeve
■ Fence 2.0 meter Height & from ground 2.10 mtr
Related products
-
Fence Block
60 x 40 x 20 CM x 115 KG
Starting from AED 13.00 (PER PC) -
Cast Aluminium Fence
Description
Fabrication and supply of Powder coated
Material Specifications.(Regular)
Cast Aluminium fence excluding Blocks:
■ Panel Size: 1200mm (h) x 3500mm Width
■ Main Post: 80 x 80 mm x 3mm thick x 2000m height Aluminium Tube fixed to Concrete with Base Plate
■ Vertical bars: 20 x 20 mm x 2mm thick Cast Aluminium vertical tubes with 100 mm gap x 1900 Height x 42 No’s per panel – (10 cm gap from ground)
■ Horizontal Bars: 40x 40 x 3mm thick – Top & Bottom Horizontal Rails x 2 no’s per panel
■ Fixing Each Panel to Concrete Block by 150x150x10mm Base Plate and Anchor Bolt
■ Surface: Cast Aluminium with Powder coated Finish in Approved RALStarting from AED 248.00 (PER LM - 2M HT) -
Palisade fence
Palisade Fence (2.4m Ht)
Description
Fabrication and supply of Palisade fence as per below specs & drawing.(Exclude RCC Blocks)
Material Specifications.(Regular)
■ Fence Height 2.4mtr
■ W Pales 17 pcs 68 x 3mm x 2200mm height
■ Crossbars 2 no’s 45 x 45 x 4mm
■ Post 100 x 55mm Thickness 3.6mm
■ Fish Plates 130 x 30mm
■ Nuts and Bolts 34 per panel M8 x 25mm
■ Rail fixing Bolts and Nuts M12 x 30mm
■ Exclude delivery and InstallationStarting from AED 210.00 (PER LM)
