Mild Steel fence

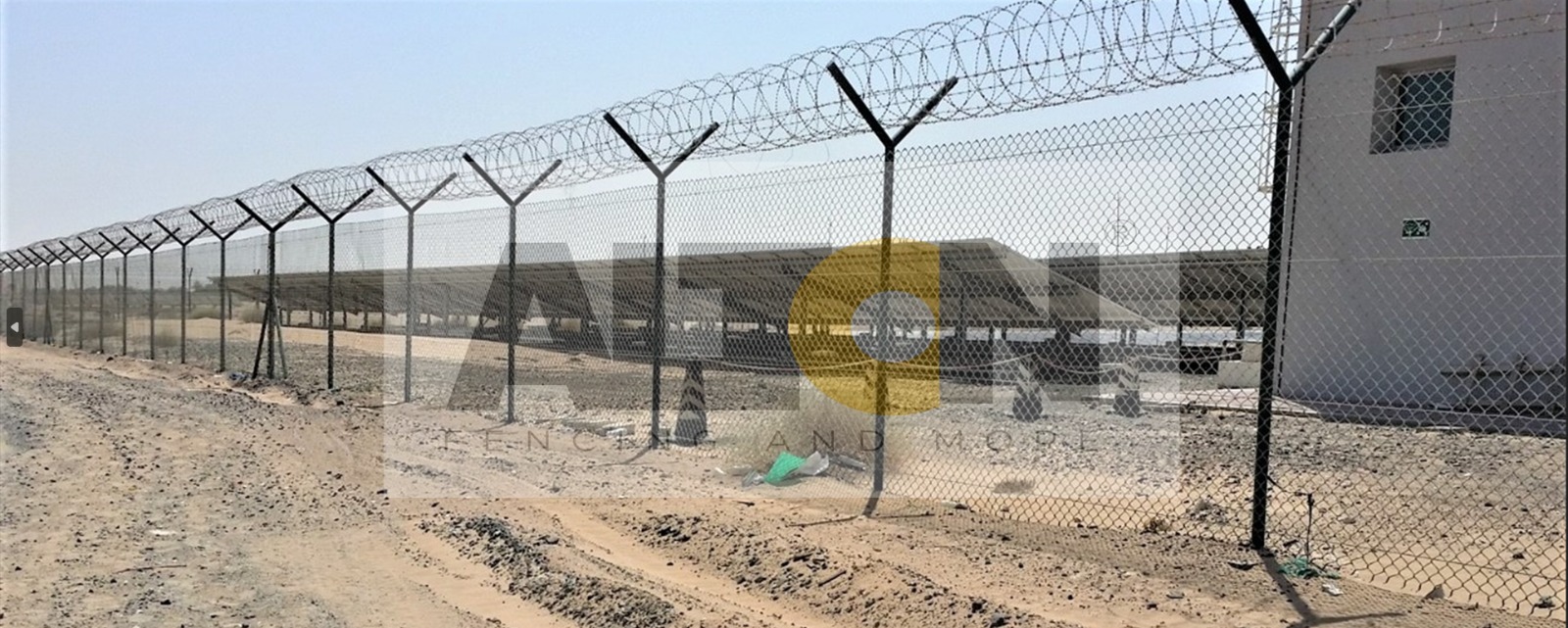

Anti Climb/High Security fence specially for high security or public prohibited entrance areas like Borders, Plants. Government high security projects etc.
Fabrication and supply of Anti Climb Fence Mesh Include Foundation.
■ Mesh size 76.2 × 12.7mm × 4.0mm Dia after powder coating Mesh.
■ Fence panel size: 2150mm (w) × 2500mm (h) panel height.
■ Post 2500, 60 x 2.5mm (T)
■ Surface: Galvanized+ powder coating (RAL 6005 Green or RAL 9005 Black).
■ 5 clips (Thickness 2.6mm)
■ Bolts 8mm
■ 1 welded floor plate thickness 8.0mm
■ Foundation: 60x40x40cm
Customize your product:
Car Parking Shade: –
Fabrication and supply of car parking shade with steel structure and foundation.
-PVC fabric (Color Beige).
– Size of shed: 2.7 x 5.0mtr (for each car) Height:2.40mtr from ground level [Standard]
– PVC fabric- steel section + epoxy coating + Base plate + Column + Arc members + Pipe + anchor bolts + Horizontal members
– Exclude Foundation
Beautiful and strong fence. Mainly use for playgrounds, parks, Deserts, Farms, Buildings, High-security areas and sites.
Material Specifications. (Regular)
PVC – CHAIN LINK FENCE FOR PROJECT:-
PVC CHAINLINK FENCING 2.2/3.2mm x 50X50mm fence color RAL 6005
■ Fence height 2 mtr
■ LINE WIRE – 3.55/4mm Dia 5 rows- Top row with double wire
■ STIRRUP WIRE – 2.50/3.55 mm DIA.
■ TIE WIRE- 1.40/2.00 mm DIA
■ INTERMEDIATE POST 60mm OD (2mm THK) MS PIPE @ EVERY 3 MT C/C
■ STRAINING POST 76mm OD (2mm THK) MS PIPE WITH 2 NOS. @ EVERY 45 MT C/C
■ CORNER POST 76mm OD (2mm THK) MS PIPE @ EVERY CORNER
■ END POST 76mm OD (2mm THK) MS PIPE
■ All posts NC paint finish Green color RAL 6005.
[Optional: Foundation size 60 x 30 x 30 x3mtr cc exclude excavation for foundation]
Any RAL Color

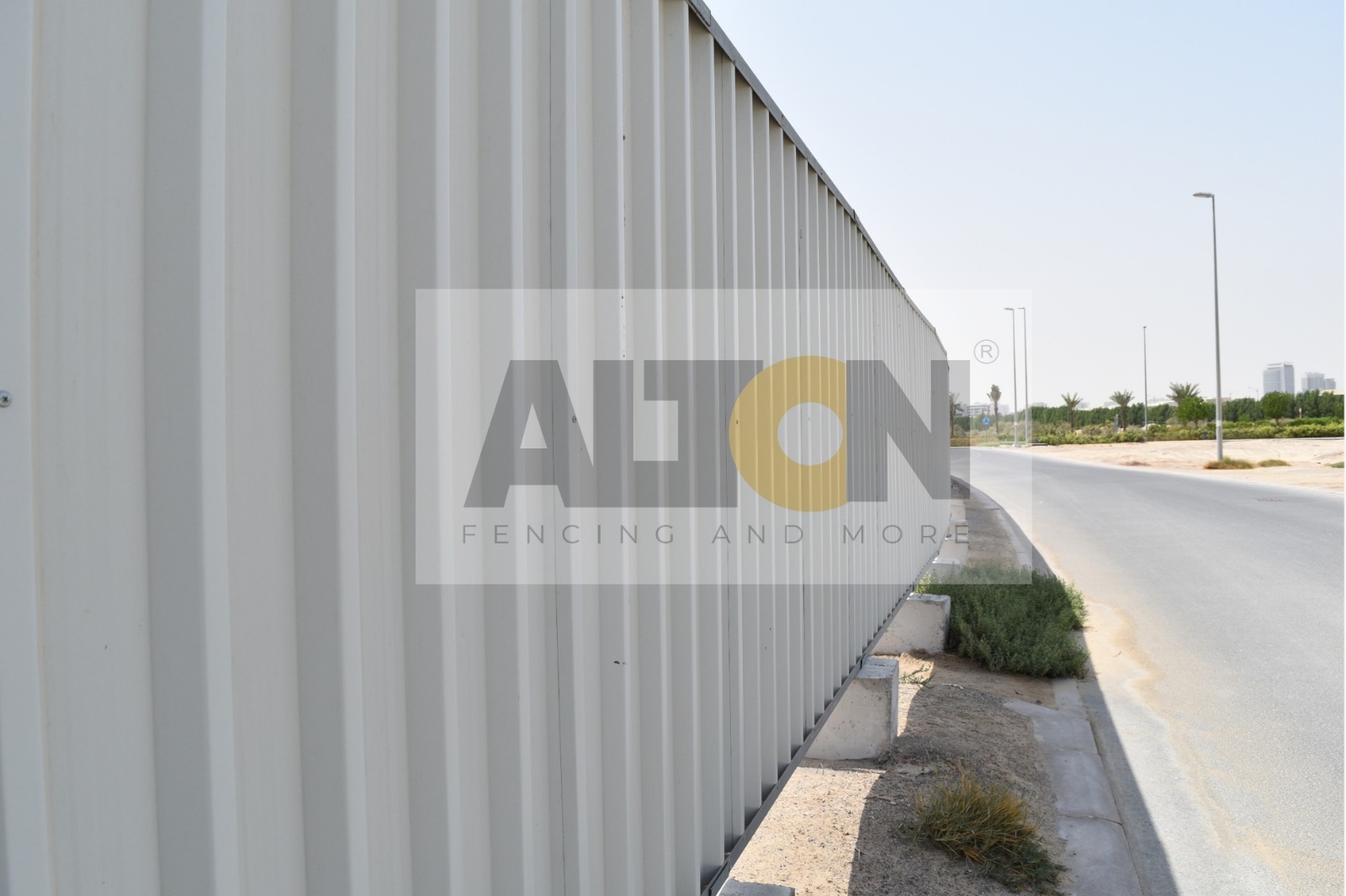

Galvanized Temporary fence (Continuous Type) for construction sites as per DM approved.
Available in all colors (Good for branding also).
CONTINUOUS GI FENCE FOR PROJECT:
Fabrication & supply of CONTINUOUS GI FENCE
includes RCC Blocks
■ Fence will be .40mm corrugated profile sheet. 9002 color
■ Pipe will be 48 mm OD G.I- 2mm (T) front and back
■ U Channel- 40x40x40mm- 1.2mm (T)
■ Fence color off white- (Ral 9002)
■ RCC Blocks – 600x400x300 mm each every 2.44 mtr CC.
■ Clamp & Coupler – G.I Standard.
■ back Support Pipe (L)- 2 mtr & 1.20 mtr –
■ Fence 2 meter Height & from ground 2.30 mtr incl bocks
60 x 40 x 20 CM x 115 KG
Printing of High-Resolution PVC Banner with High Quality Ink Digital Print with Top and Bottom fixing by Rivet on hoarding.
Available 42od / 48 od x 1 to 2 mm thick
Moveable fence easy to install and remove, Good for event organization and expo’s to control the crowd.
Also helpful to do branding.
HERAS FENCE FOR PROJECT:-
■ Fabrication & supply of Heras Fence.
■ Surface: Hot Dip Galvanized + Silver
■ Fence Color RAL 9006
■ Mesh opening :100 X 50mm
■ Wire Di.: Horizontal :4mm, Vertical: 3mm
■ Frame Pipe: Horizontal : 32X1mm(T)
■ Back support 2m x 42 OD x 1.1mm
■ Clamp Standard 3mm
[Optional : PCC Foundation 600 x 200 x 200mm x 3.5mtr CC]
■ Size: 3500mm(W) X 2000mm(H)
■ (From ground fence height is 2.20mtr including blocks)
